BMW HP4 RACE details revealed

By BikeSocial

Bennetts BikeSocial was launched in autumn 2012

Posted:

19.04.2017

BMW HP4 RACE now production ready

After teasing us with a prototype last year BMW has finally revealed the final version of the most extreme production bike it’s ever made – the HP4 Race.

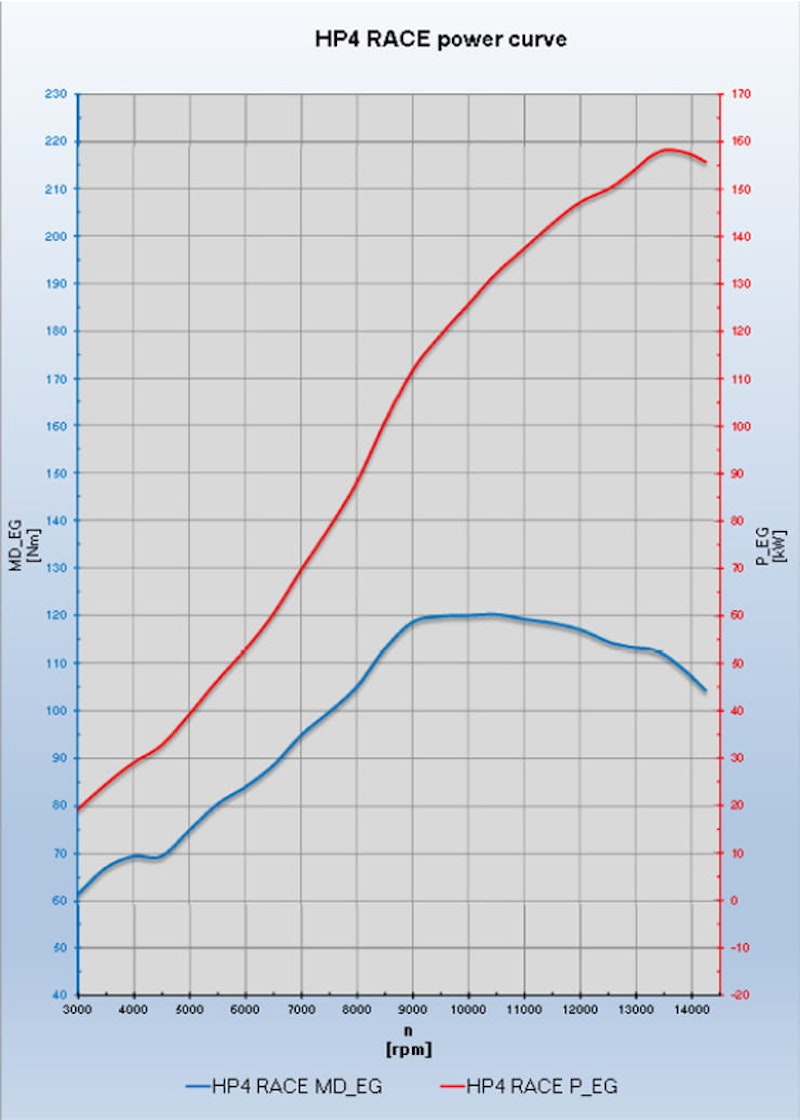

And you’re unlikely to be disappointed. Let’s cut straight to the chase; the carbon-framed, track-only wonder is kicking out 215hp from its race-tuned S1000RR engine at a towering 13,900rpm, backed up by 120Nm of torque at 10,000rpm. Those are impressive figures, but not as astounding as the bike’s weight. BMW is claiming a dry weight of just 146kg, and even track-ready with a full 17.5l of fuel in the tank, it’s just 171.4kg.

That means it’s about as light as a MotoGP bike (157kg without fuel), and not a million miles away in terms of power, either. A WSB bike is heavier than the HP4, with a minimum of 168kg before fuel is added.

One other number that counts is 750. That’s how many of the bikes BMW will be making. Price? That'll be £68,000.

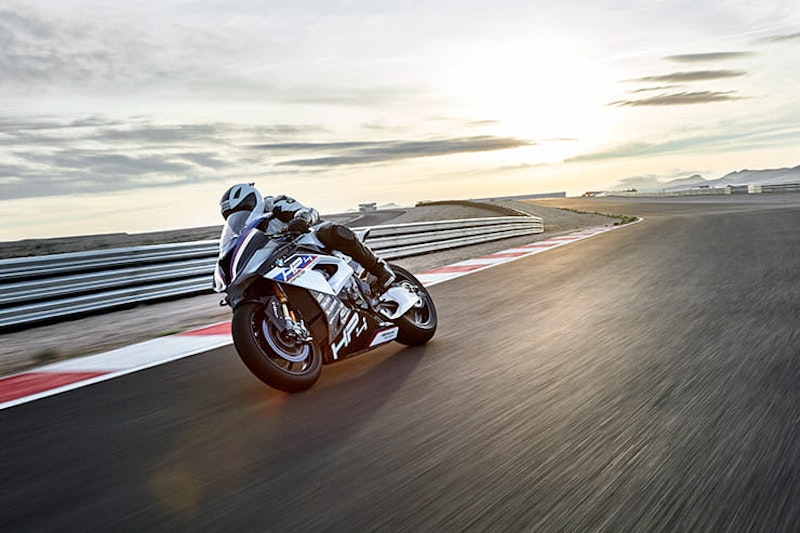

BMW HP4 RACE on track

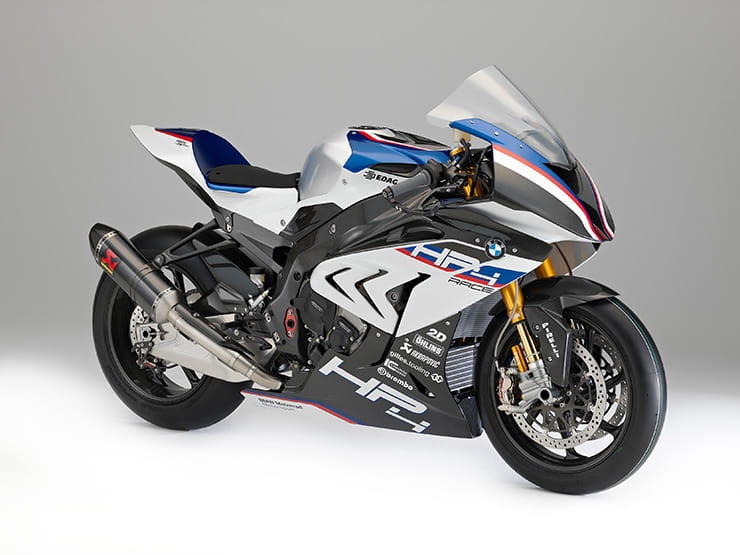

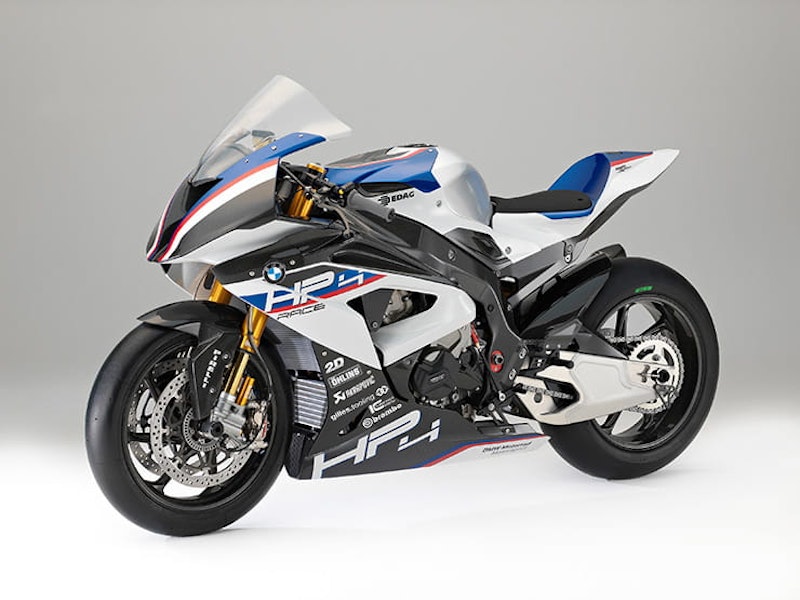

The key to the bike’s light weight is its use of carbon fibre for the frame, subframe, bodywork and wheels. Made using production processes developed to eliminate the usual carbon drawback of labour-intensive manufacture and to address the oft-cited criticism that carbon fibre is too rigid for a bike chassis, it’s the most advanced carbon fibre frame seen to date.

In weight terms, the chassis is just 7.8kg, which is 4kg less than the latest S1000RR’s aluminium chassis. The wheels are similarly around 30% lighter than their alloy equivalents, reducing gyroscopic forces by 40% to make the bike turn much faster.

BMW has introduced three forms of carbon manufacturing for different parts of the bike. The first – dubbed ‘Carbonview’ is a fairly traditional hand lay-up method, and is used for cosmetic, non-structural parts like the bodywork. The second, ‘Carboncore’, is a Resin Transfer Moulding (RTM) system that injects resin into carbon fabrics that are in a mould. And finally there’s ‘Carbondrive’ which combines RTM with non-woven, bonded carbon fabrics with continuous fibres to give a balance of flexibility, strength and weight. It’s the last of these that’s used for the frame and wheels.

At the back, there’s a carbon subframe that allows the whole tail to be mounted at three different heights to suit the rider’s size and preference, and everything else is similarly adjustable. The steering head angle, swingarm pivot point, fork offset and of course the footpegs can all be adjusted to suit your needs.

Moving away from the chassis, the engine is more than just a straight S1000RR unit. It’s modified enough to get its own series of engine numbers. New camshafts, milled con-rods, a balanced and lightened crankshaft and all new injection settings give the performance boost. Behind it there’s a race-spec gearbox with a reversed shift pattern (up for first, down for the rest), and revised gear ratios. Each HP4 gets a selection of different sprockets to adjust the gearing. HP Shift Assistant Pro, giving clutchless up and down-shifts with an auto-blip, is standard.

New BMW HP4 Race walk around | Milan 2016 | BikeSocial

Unveiled to the public for the first time at the Milan Motorcycle Show in November 2016, this BMW HP4 Race is dripping with carbon fibre!

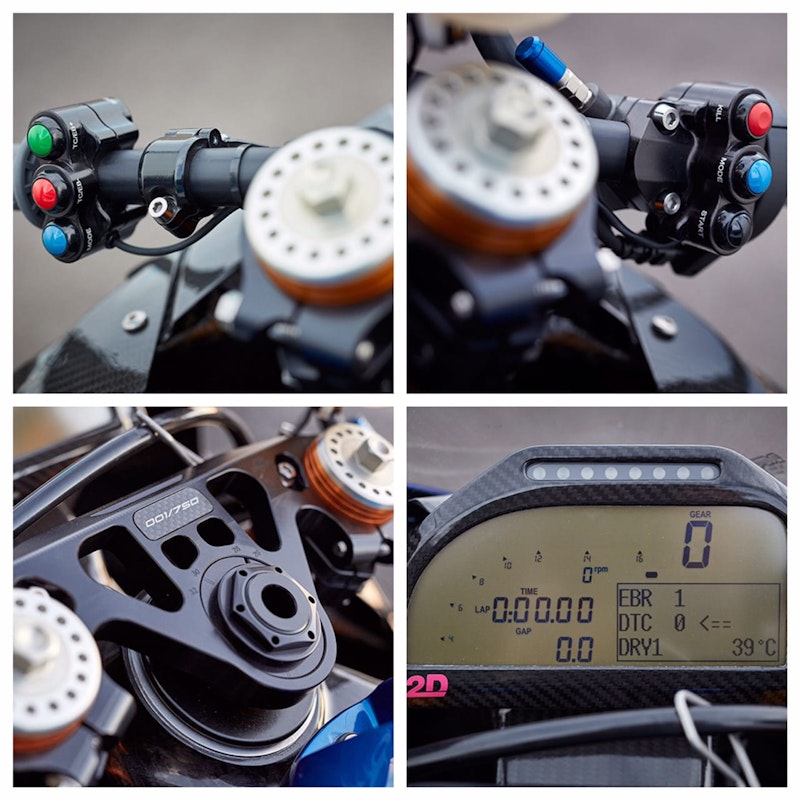

Which brings us to the bike’s electronics package. As you’d expect, it gets the full suite of traction control, engine brake control, wheelie control and launch control, with race-spec switchgear on the bars to operate it all. There’s even a pit lane speed limiter.

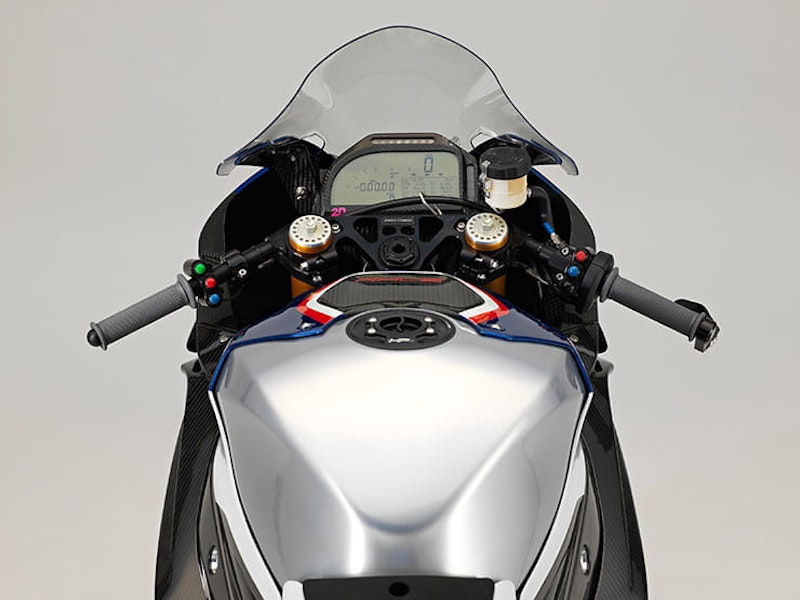

The dashboard is again race-spec, revealing lap times, electronics settings, gear position and water temperature but not fussing about details like speed. In the pits, it can give even more info including front and rear brake pressures, spring travel, throttle position, front and rear wheel speeds and bank angles. Basically, it’s a race-style datalogger.

Aside from all the HP4’s USPs, there’s a solid backing of high-spec parts from other manufacturers. Like the Ohlins FGR 300 forks and TTX 36 GP rear shock – the same stuff that’s used in WSB and MotoGP. Or the Brembo GP4 PR Monobloc brakes, which again are Superbike racing refugees. Basically, the HP4’s spec means that if you’re not the fastest guy at the track day, you’ve only got yourself to blame.

Deliveries to the lucky 750 buyers are due to start later this year, and the bikes are expected to sell out just as quickly as they perform on track.

ENGINE
Capacity999cc
Bore/stroke80/49.7mm
Output158kW/215hp/212bhp @ 13,900 rpm
Torque120Nm/88.5ft lb @ 10,000rpm
TypeWater-cooled in-line 4-cylinder engine
Compression/fuel13.7-13.9:1/min Super Unleaded, min. octane number 98 (RON)
Valve/accelerator actuationDOHC (double overhead camshaft)
Valve activationvia individual rocker arms
Valves per cylinder4
Ø intake/outlet mm33.5/27.2
Throttle valve diameter48mm
ELECTRICAL SYSTEM
Alternator406 W
Battery12/5 V/Ah, Li-ion maintenance-free
Starter0.8 kW
POWER TRANSMISSION - GEARBOX
ClutchMulti-plate anti-hopping wet clutch, mechanically activated
GearboxConstant-mesh 6-speed racing gearbox (EVO) with spur toothing (gear 1, 2, 4, 5, 6 optimised)
Primary ratio1.652
Transmission ratios1st 2.388
2nd 2.000
3rd 1.727
4th 1.545
5th 1.400
6th 1.291
Rear wheel driveChain
Transmission ratio2.647
Traction controlDTC 15-level adjustment
Engine brakeEBR 15-level adjustment
SUSPENSION
Frame construction typeCarbon fibre monocoque RTM frame with adjustable steering head angle and swingarm centre of rotation, load-bearing engine
Front wheel controlÖhlins FGR 300 Superbike World Cup fork, adjustable rebound and compression damping, adjustable spring preload, adjustable Öhlins SD052 steering damper, quick front wheel changing system by means of rotating forklegs with mounted front wheel cover (brake calipers do not have to be dismounted to change wheels)
Rear wheel controlAluminium underslung double-sided swingarm, Öhlins TTX 36 GP central spring strut, adjustable rebound and compression damping, adjustable spring preload, spring strut attachment point adjustable at the top (0/3 mm), adjustable spring strut deflection (tension strut length), support surfaces for wheel spacer sleeve on chain tensioners for simple/hands-free wheel mounting, titanium chain tensioner on the outside, aluminium on the inside, CFRP assembly stand mountings on the swingarm
Spring travelfront/rear mm 130/120
Wheel castor102.5mm (adjustable from 95-112)
Wheelbase1440mm
Steering head angle65.5° (adjustable by 0.0°, +-0.5°, +-1°)
Tension strut113 mm (variably adjustable +- 5mm)
Swingarm length604mm
Fork bridge offset30 mm (adjustable to 26 mm, 28 mm, 32 mm)
WheelsCarbon fibre wheels incl. firmly fitted wheel spacer sleeves for simple wheel mounting
Wheel sizefront 3.50 x 17"
rear 6.00 x 17"
Tyresfront 120/70 ZR 17 Pirelli Diabolo Superbike Slick SC2
rear 200/60 ZR 17 Pirelli Diabolo Superbike Slick SC2
Brake (front)Brembo Racing twin disc brake , T-floated racing brake discs, diameter 320 x 6.75 mm, 4-piston monoblock Superbike World Cup fixed caliper GP4-PR with titanium pistons, Brembo Racing handbrake pump RCS19x18 incl. adjustable Brembo Racing brake lever, Brembo Racing clutch lever (without clutch switch)
Brake (rear)Brembo Racing single disc brake, 4-piston Superbike World Cup fixed caliper with titanium pistons, brake disc diameter 220 x 4.0 mm
Footrest systemRigid footrest system in milled aluminium, adjustable to eight positions
DIMENSIONS AND WEIGHT
Seat height at unladen weight816 mm (lowest position), 831 mm (delivery state), 846 mm (highest position)
Usable fuel tank volume17.5 l (incl. reserve approx. 4 l)
Dry weight146kg
Unladen weight, road ready, fully fuelled)171.4kg
EQUIPMENT (SELECTION)
Standard equipmentBMW Motorrad Race Dynamic Traction Control +/-7; Engine Brake Regulation +/-7, 4 riding modes (WET, INT, Dry1, Dry2), 2D data recording/stick logger/lap timing/GPS, 2D dashboard, 2D data recording prepared for spring travel sensors / brake pressure sensors, Pit Lane Limiter, Launch Control, adjustable footrest (8 levels), adjustable handlebars (tapering), fork bridge with offset adjustment (variable using accessory kit), seat height adjustment, steering head angle adjustment (variable using accessory kit), swingarm centre of rotation adjustment (variable using accessory kit), HP4 Race Shift Assistant (Up/ Down), shift pattern reversed as delivered, Superbike World Cup button unit, HP Race Brake lever guard, secondary ratio variable using accessory kit (pinion 15, 16, 17 / chain ring 41, 42, 43, 44, 45)
